$14000-16000 /set
| betaling Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Min. orde: | 1 set |
| Haven: | Qingdao /Shanghai /Tianjin /Guangzhou |
Model: K6
merk: Glans
Brand Name: Shinewash
Model Number: K6
Warranty: 3 Year
Output Power: <1000w
Ontwerpstijl: Nieuw China-chic
Item: contactless brushless air dryer automatic car wash machine
Water Supply: Pipeline DN25, Flow≥100L/min
Power Supply: 380V 50HZ
Air Supply: Pressure 0.75-0.9Mpa
Wash Speed: 3-4.5min/car
Water Consumption: 90-140L/car
Gebruik: Automatische carwash
Washing System: Service 24 hours
Service Life: >15 years
Maatwerk: Accepted
Soorten: Auto Wasmachine
Plaats Van Herkomst: China
Place Of Origin: Henan, China
Size: L6800*W3650*H3000mm
Material: Steel
| Verkoopeenheden | : | set |
| Pakkettype | : | Shinewash Contactloos borstelloze luchtdroger Automatische autolasmachine Touchless auto wasmachines Systeem Verpakking Details: 1 Set verpakt in houten doos: verzonden door LCL 20GP Container: 2 sets (gedemonteerd) 40HQ Container: 6 sets (gedemonteerd) P |
| Afbeeldingsvoorbeeld | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

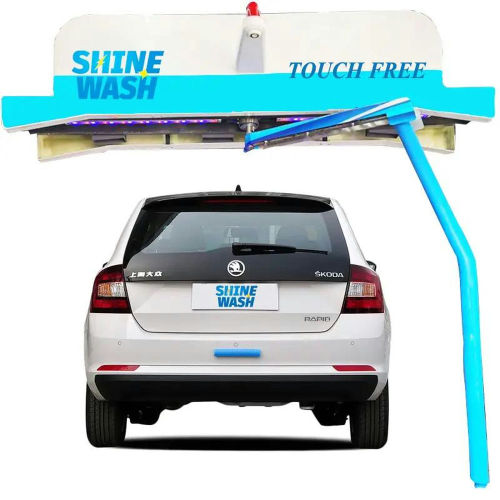

Automatische touchless autosmachine, hete galvaniserende installatiekader met hoge anti-corrosie en anti roest functioneerbare auto's modellen: sedans, SUV's, MPV, enz.
|
Model
|
Machine Size
|
Max.Car Size
|
Installation Size
|
|
K6
|
L6800*W3650*H3000mm
|
L5600*W2600*H2000mm
|
L7000*W3800*H3100mm
|
|
Wash Speed
|
Water Consumption
|
Foam Consumption
|
Wax Consumption
|
|
3-4.5min/car
|
90-140L/car
|
20-150ml/car
|
20-150ml/car
|
|
Configuration
|
Intruction
|
|
Flush chassis and hubs system
|
Equipped with the function of cleaning the chassis and wheel hub, the nozzle pressure can reach 8-9 MPa.
|
|
Interated chemical mixing system
|
Automatically adjust the ratio of a variety of liquids, including: ordinary car washing liquid, water flooding coating wax, and
no-scrub car washing liquid.
|
|
High-pressure flushing (standard/strong)
|
The water pressure of the water pump nozzle can reach 10MPa, and the robot arms of all equipment wash the body at a constant speed
and pressure. Two modes (standard/power) can be selected.
|
|
Water wax coating
|
A macromolecular chloride is generated in the car body, which plays a role in preventing acid rain, pollution, and ultraviolet
rays.
|
|
Oil free (reducer, bearing)
|
Equipped with NSK bearings originating in Japan as standard, which is oil-free and fully sealed, and is maintenance-free for life.
|
|
Intelligent 3D detection system
|
Equipped with advanced ultrasonic sensors, smart photoelectric sensors and closed-loop controllers, it uses an accurate
closed-loop detection system to detect the length of the vehicle to ensure stability, safety, and energy saving.
|
|
Parking guidance system
|
Guide the vehicle to park by reminding lights to avoid danger.
|
|
Intelligent electronic collision avoidance system
|
Carry out vehicle cleaning under the premise of ensuring safety, and carry out safety protection for various emergencies.
|
|
Security alarm system
|
When the equipment fails, the light and sound will prompt at the same time, and the equipment will stop running at the same time.
|
|
Remote control
|
Through the Internet technology, the remote control of the car washing machine is truly realized, including remote start, close,
reset, diagnosis, upgrade, operation, remote liquid level monitoring and other operations.
|
|
Standby mode
|
If the device is not used for a long time, it will automatically enter the standby state, which can reduce the energy consumption
of the device in the idle state by 85%.
|
|
Fault self-check
|
When the equipment fails, the efficient PLC control system will preliminarily determine the location and possibility of the
failure through the detection of various sensors and parts, which is convenient for simple and quick maintenance.
|
|
Leakage protection
|
It is used to protect the staff who may get an electric shock in the event of a leakage fault. At the same time, it has overload
and short-circuit protection functions, which can be used to protect the circuit and the motor from overload and short-circuit.
|
|
A free upgrade
|
The program version is free to upgrade for life, so that your car washing machine will never be outdated.
|
|
Strengthen the front and rear washing
|
The German PINFL high-pressure industrial water pump is used to ensure that the nozzle water pressure reaches 10MPa, which can
truly achieve high-pressure washing and sweep stubborn stains.
|
|
Separation of water and electricity
|
No electrical appliances are exposed to the outside of our mainframe rack, and put the control box and wires in the storage room.
This ensures safety and reduces failures.
|
|
Separation of water and foam
|
We set up two pipelines to spray water and foam separately, the single foam tube we designed is more than 2/3 less wasteful than
the ordinary car washing machine.
|
|
Direct drive system
|
The use of new direct drive technology has greatly improved the energy saving, safety and stability of the equipment.
|
|
Hot dip galvanized frame double anticorrosive
|
The overall hot-dip galvanized frame is anti-corrosive and wear-resistant for up to 30 years, and can be simply adjusted according
to the installation height. |
|
Frequency conversion energy saving system
|
Advanced frequency conversion technology realizes the stage adjustment of chassis flushing water pressure, body flushing water
pressure, and body drying air pressure. Various pressures can be adjusted according to the adjustment of climate and temperature to achieve the maximum optimization of energy saving and cleaning effects. |
